High-Performance Construction for Coastal Resilience

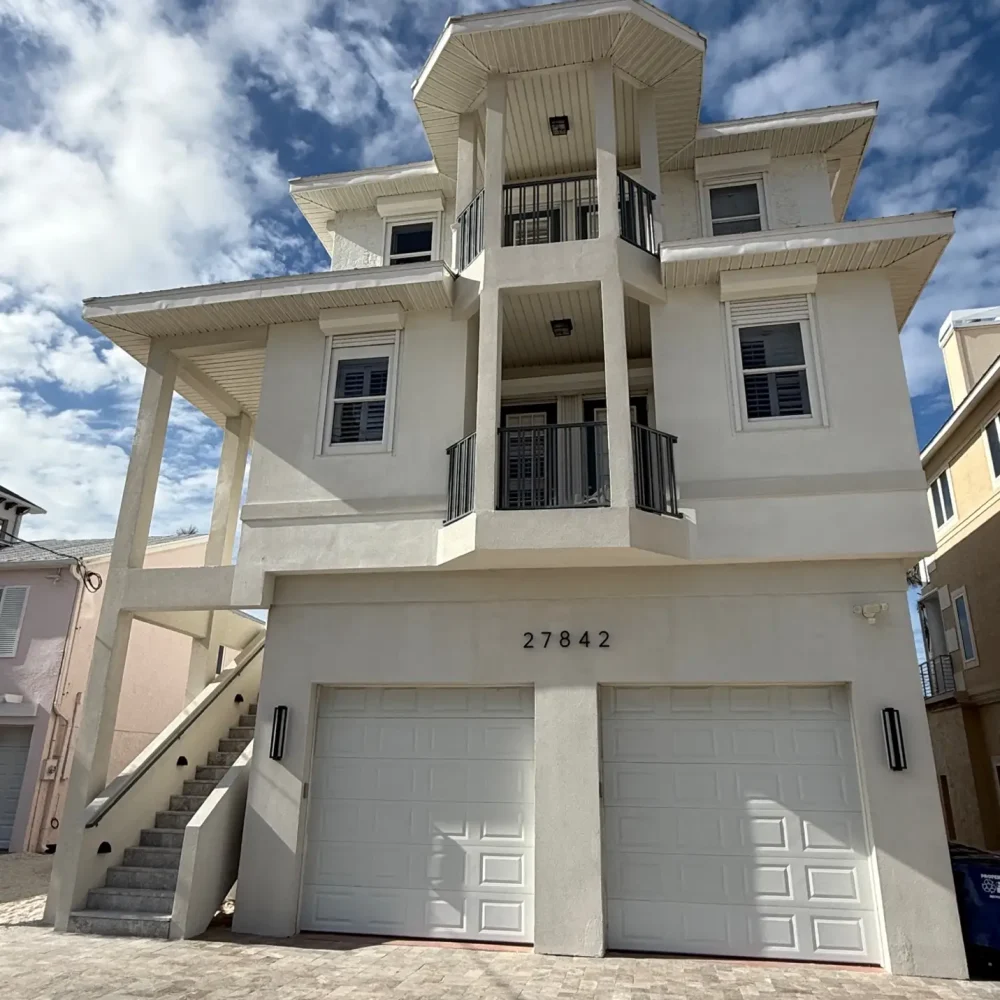

Naples demands perfection. We deliver engineering-led construction that meets the strict wind load and flood zone requirements of the City of Naples and Collier County. From Port Royal to The Moorings, we build fortresses against the Gulf.
Properties along the Naples Gulf coast are often designated as FEMA “V-Zones” (Velocity Zones) or Coastal A-Zones.
The Challenge: Structures here must withstand the physical impact of crashing waves, not just rising water.
The Solution: We design lower-level enclosures with Breakaway Walls. These walls are engineered to fail predictably under a lateral load of 20 psf (pounds per square foot) during a storm surge. This failure preserves the integrity of the main structural pilings by preventing the wall from acting as a “sail” against the water.
Foundation Stabilization on Fill Soil
Scour Calculations: During a major hurricane, wave energy can erode beach sand to significant depths. We design foundations assuming the top 5 to 15 feet of soil support will disappear.
Deep Embedment: We drive piles significantly deeper to achieve fixity in the stable soil layers below the scour line, ensuring the structure remains standing even if the beach erodes around it.
Concrete Restoration
Cathodic Protection (CP): We employ advanced restoration techniques using Galvanic Protection. We install “sacrificial anodes” (typically zinc) that corrode in place of your structural steel, extending the life of your concrete columns and balconies.
Restoration: We repair spalling with high-strength, polymer-modified mortars that resist future salt intrusion.

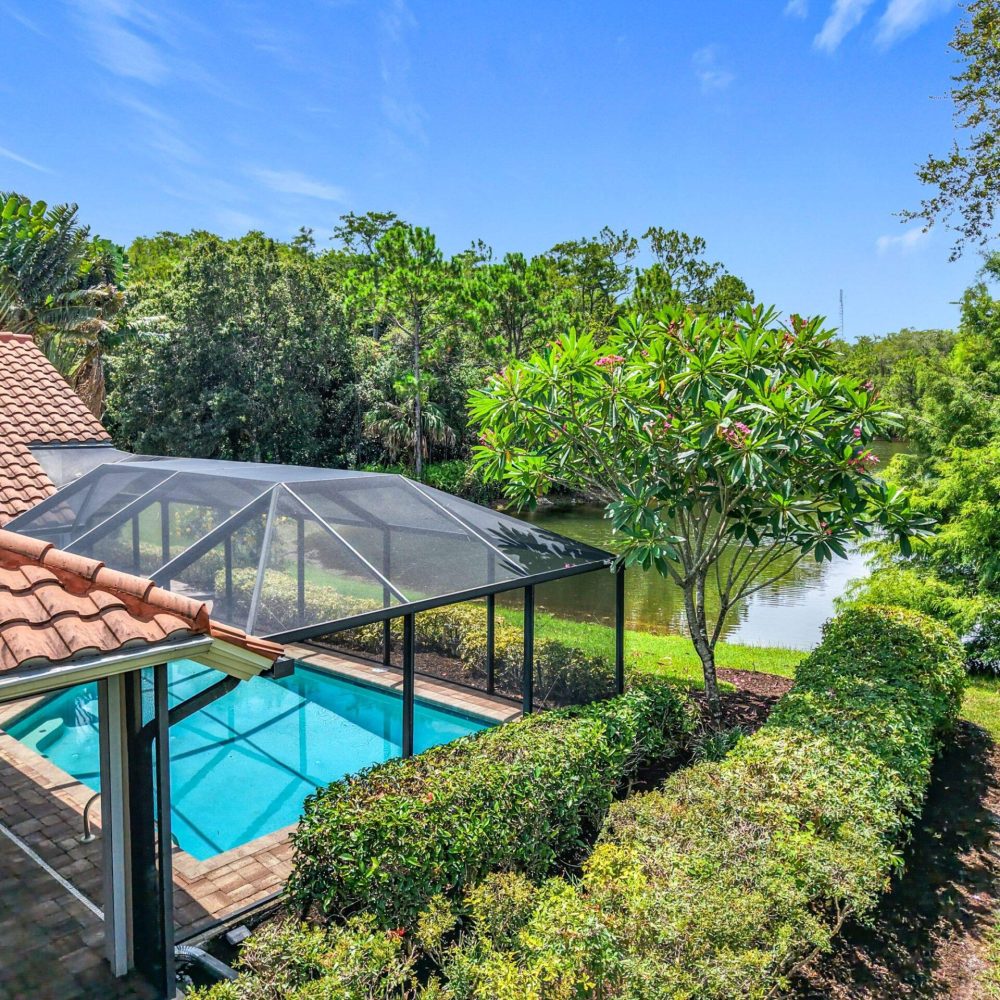

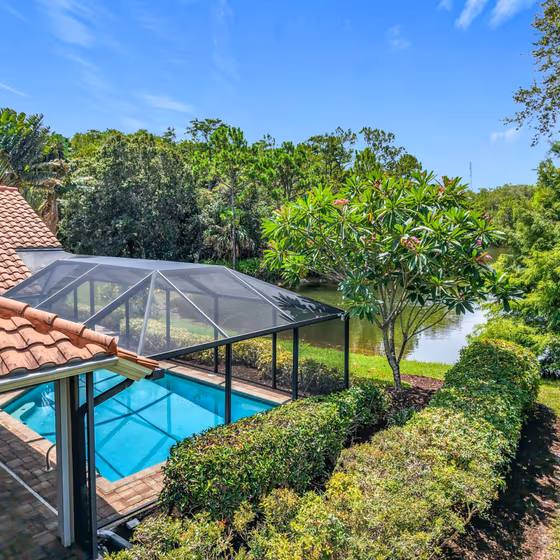

Luxury Pools & Hydrostatic Management
Infinity Edge Engineering: We design and build the complex catch basins and structural troughs required for perimeter-overflow and infinity-edge pools common in Naples luxury design.
Hydrostatic Relief: We manage the high water tables of coastal lots with extensive dewatering during construction and permanent relief valves to protect the shell.
Coastal Flood Protection
V-Zone Mitigation: For homes in Velocity Zones (V-Zones), we install “wet floodproofing” vents that allow water to flow through lower levels, relieving hydrostatic pressure.

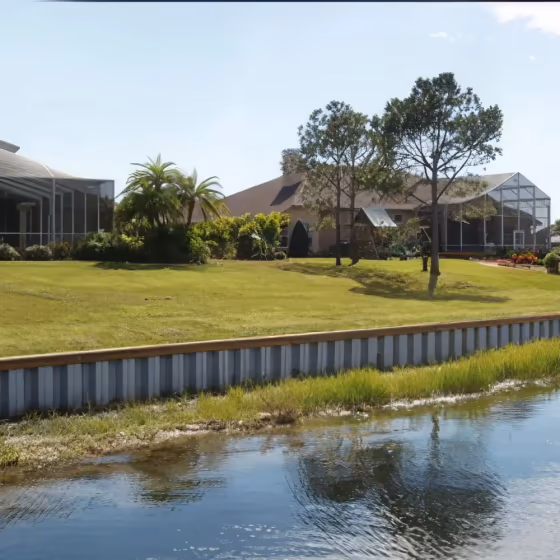

Seawalls and Docks
We design marine structures that meet the specific environmental standards of Naples waterways.
Turtle Glass Compliance: For marine structures and coastal homes, we install impact-rated glass with a Visible Light Transmittance (VLT) of 45% or less (“Turtle Glass”). This protects nesting sea turtles from artificial light disorientation while maintaining hurricane protection.
Composite Sheet Piling: We often utilize high-performance composite materials for seawalls that offer the aesthetic of a clean, straight wall without the corrosion risk of steel-reinforced concrete.
Yes. The City of Cape Coral requires a permit for all structural marine repairs, including cap replacement and tie-back installation.
It is a continuous concrete beam installed at the bottom of a vinyl seawall (at the mudline) to prevent the flexible sheets from rotating outward due to soil pressure.
Yes, but you must maintain the required buffer zone. If the burrow is in the footprint of the pool, you must apply for a permit from the FWC to collapse the burrow (only during non-nesting season) or mitigate it.
Don’t let environmental regulations or soil issues stop your project. Work with engineers who understand the H-Series standards.
